DataMote® IoT Sensor/Actuator Platform

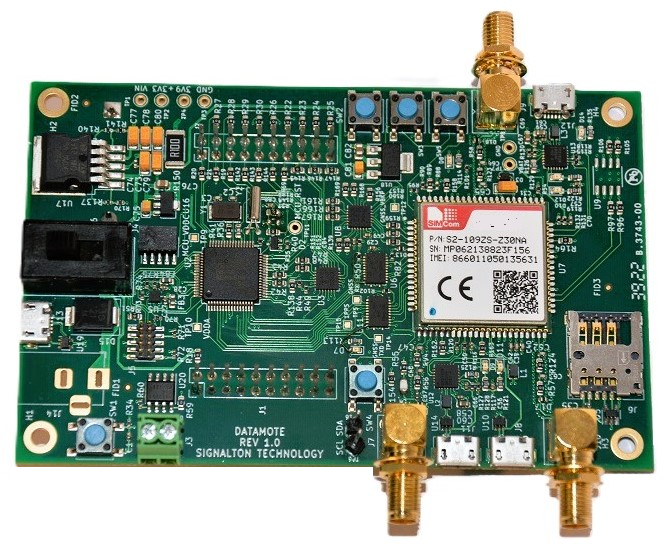

DataMote Board Image

DataMote Board

DataMote is a state-of-the-art embedded IoT node and gateway for use in wireless sensor and actuator networks (WSAN). Custom developed and fully tested, it comprises a versatile electronic board featuring Texas Instruments (TI) ARM processors and integrated circuits, and embedded software involving drivers, middleware and application libraries running on the TI real-time operating system (TI-RTOS).

Since both the electronics and the embedded software were developed in-house, any hardware component as well as the software can be modified to the requirements of a given use case, making the whole system a versatile solution platform, rather than a fixed product. We developed an array of solutions using DataMote, which have been tested and deployed in the field at technology readiness level (TRL) of 8.

DataMote Specifications

Processor (MCU) 80 MHz, 100 DMIPS, ARM Cortex-M4F Processor with 256 kB Flash program memory, 32 kB SRAM, 32 Channel DMA, Hibernation module.
Cellular Connection On-board module and antenna connector for 4G/LTE (LTE-FDD B1/B3/B5/B7/B8/B20) and GSM/GPRS/EDGE (900/1800 MHz) with support of protocols: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/HTTP/DNS, MQTT/MQTTS, TLS1.2
Wireless Connection On-board module and antenna connector for Bluetooth BT5.0, BLE
I/O USB 2.0 host/device, CAN 2.0 A/B, I2C (2x), SPI (1x), UART (3x)
Accelerometer/Vibration On-board accelerometer: Ultra-low power, 3-axis high-definition (12-bit), variable output data rate (1 Hz-5.3 kHz), selectable full scale (±2g/±4g/±8g/±16g), Orientation detection (6D/4D), motion and fall detection (2 programmable interrupt generators), operation temperature range: -40° to 85°, embedded temperature sensor.
Geopositioning On-board GNSS Receiver (GPS, GLONASS, BeiDou) and antenna connector. Accuracy < 2 m.
Peripherals ADC (2x), Flash memory (1Gb), JTAG debug emulator, power management, TI Boosterpack compatible pinout connector.
Board Size 7 x 11 cm (PCB)
Embedded Software C/C++ hardware drivers, middleware and application program, TI-RTOS with POSIX support, TI programming toolchain including Code Composer Studio.
